Disposable mask packaging machine parameters:
(1) Main performance and structural characteristics
1. Dual frequency converter control (servo motor can be selected), the bag length can be set and cut immediately, no need to adjust the empty travel, one step in place, saving time and film.
2. Man-machine interface, convenient and fast parameter setting.
3. Fault self-diagnosis function, the fault display is clear at a glance.
4. High-sensitivity photoelectric eye color mark tracking, digitally input the sealing and cutting position to make the sealing and cutting position more accurate.
5. Temperature independent PID control, better suitable for various packaging materials.
6. Positioning stop function, no sticking to the knife and no waste of film.
7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
8. All the control is realized by software, which is convenient for function adjustment and technical upgrade and keeps advanced.
(2) Scope of application

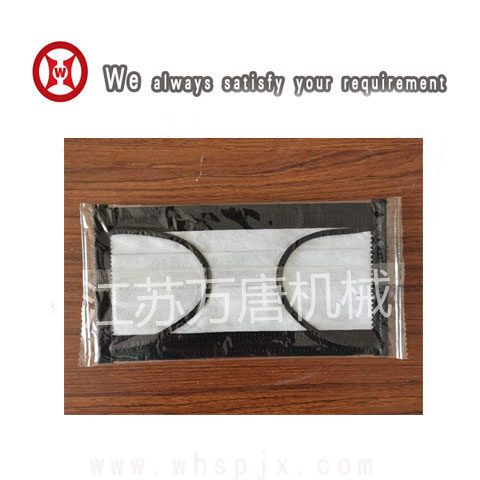

Suitable for the packaging of regular objects such as masks, food, medicine, daily necessities, industrial parts, cartons or trays.
(3) Basic technical parameters
Packaging film width: 90-320mm
Bag-making length: 90 ～ 300mm
Product height: 5-40mm (more than 40mm can be customized according to customer requirements)
Diameter of film roll: ≤400mm
Packing speed: 30-280 bags / minute
Voltage specifications: 220V / 50HZ
Power specifications: 2.6kw
Machine size: (L) 4000 × (W) 900 × (H) 1500mm
Total weight: 500Kg
